1. Executive Summary: What TSMC's High-NA Roadmap Means for Global Tech and Family Portfolios

As a working parent managing household finances, retirement accounts, and children's college savings, keeping up with seismic shifts in global technology can feel daunting. Yet, the foundational components running our smart homes, enterprise work laptops, and family vehicles all originate from a handful of semiconductor cleanrooms across the globe. In September 2026, ahead of the prestigious SPIE BACUS Photomask Symposium in Monterey, California, Taiwan Semiconductor Manufacturing Company (TSMC) and Netherlands-based ASML announced a landmark strategic consensus: TSMC has officially scheduled the deployment of ASML’s next-generation High-NA (Numerical Aperture) Extreme Ultraviolet (EUV) lithography systems for High-Volume Manufacturing (HVM) starting in 2030.

For years, Wall Street and retail investors debated whether TSMC—the undisputed contract chipmaking titan with over 50% global foundry market share—would bypass or drastically delay adopting ASML's cutting-edge machines due to astronomical procurement costs and optical engineering challenges. This announcement firmly dispels the existential threat of TSMC defecting from ASML’s technological roadmap. It acts as an undeniable catalyst for ASML, which commands a total 100% monopoly in commercial EUV equipment and over 90% share of the overall lithography tool market.

However, thorough due diligence reveals a critical divergence: investors now face two vastly different timelines. The first timeline is an immediate operational impulse driven by competitors Intel and Samsung Electronics, who are deploying High-NA tools between 2024 and 2028. The second timeline is a prolonged structural ramp governed by TSMC, which plans to extract maximum profitability from its existing 0.33 Low-NA EUV fleet through 2029 before transitioning to High-NA and a radical new 12-inch photomask architecture between 2030 and 2033. For families balancing long-term capital preservation with tech-driven growth, understanding this precise multi-year calendar is essential to avoid purchasing high-multiple shares at premature cyclical peaks.

Family Portfolio Notice: Specific financial allocations should always defer to individual risk tolerances, formal prospectus filings, and professional financial counsel. Semiconductor equipment equities experience intense multi-year capital expenditure (CapEx) cycles, making disciplined, long-horizon planning paramount.

Understanding the Fundamental Core: What Is High-NA EUV Lithography?

At its heart, semiconductor lithography functions much like a master photographic projector. It projects microscopic circuit patterns onto silicon wafers coated with light-sensitive photoresist. The resolving power of any optical scanner is governed by Rayleigh's equation, where resolution is directly proportional to the exposure wavelength and inversely proportional to the Numerical Aperture (NA), which measures the angle of light the optical lens can collect.

During the late 2010s, the introduction of standard 0.33 NA Low-NA EUV scanners—operating at an extreme ultraviolet wavelength of 13.5 nanometers—unlocked commercial production for 7nm, 5nm, and 3nm nodes. Yet, as circuit features dip below 2nm, the optical limits of 0.33 NA require complicated "multi-patterning" passes, stacking masks on top of each other, heightening defect vulnerability, and elongating factory cycle times. The High-NA EUV system (the EXE series) increases the lens aperture from 0.33 to 0.55, enabling chipmakers to print sharp circuit geometries as tight as 8nm in a single exposure pass.

The Crucial Divergence: Immediate Momentum vs. Structural Patience

Why should a family investor care about optical physics? Because capital markets price expectations long before commercial cash flows materialize. ASML currently trades around a trailing (TTM) price-to-earnings (P/E) ratio of approximately 54.4x against a market capitalization surpassing $658 billion in September 2026, which is above its 5-year median P/E of about 39.2x. The immediate catalyst timeline is fueled by Intel processing over 1 million wafers across testing, R&D, and select 18A production layers on its High-NA EUV fleet and Samsung planning DRAM integration for 2028. Conversely, the structural patient timeline dictates that TSMC's massive hardware orders, volume wafer fees, and the commercialization of 12-inch photomasks are expected to deliver significant top-line revenue after 2030. Navigating this multi-year delta separates prudent household investors from momentum chasers.

2. Key Stakeholder Statements and Executive Alignment: The Official Record

To grasp why this deal materialized after years of tense public posturing, we must examine the verified public statements from top industrial leaders. There are no rumors here; these are documented corporate communications setting the terms of the next industrial decade.

Deconstructing C.C. Wei's Pragmatism

For household planners, Dr. C.C. Wei's management style offers a masterclass in risk mitigation. Under his stewardship, TSMC has steadfastly prioritized gross profit margins above 53% and return on equity (ROE) over premature technical glory. By waiting until tool maturity reaches the EXE:5200B series—capable of handling over 220 wafers per hour (WPH) compared to the introductory EXE:5000's ~150 WPH—TSMC ensures that when its massive capital outlay begins, it translates directly into cash flow rather than idle fab downtime.

ASML's Dual Roadmap Validation

For Christophe Fouquet, TSMC's formal commitment validates ASML's multi-decade R&D investments, which consume roughly 15% of annual revenue. By securing TSMC's partnership on the 12-inch mask initiative, ASML aligns the world's sophisticated manufacturing pipeline with its proprietary engineering roadmap, aiming to ensure structural demand through the mid-2030s.

3. Hardware Specifications and Balance Sheet Realities: The Quantitative Deep Dive

To evaluate whether a company can generate sustainable investment returns, we must examine the underlying unit economics. High-NA EUV machines are not mere factory appliances; they are among the most intricate, costly physical systems assembled in human history.

Physical Scale and Logistical Footprint

A single ASML High-NA EUV system (such as the EXE:5000 or production-grade EXE:5200) weighs about 150 metric tons (over 330,000 pounds). Transporting one unit from Veldhoven in the Netherlands to a customer facility in Tainan, Hsinchu, Oregon, or Pyeongtaek typically requires four to five chartered Boeing 747 cargo freighters and more than 250 specialized shipping crates. Inside the cleanroom, semiconductor fabs generally construct reinforced dual-story foundations with minimum ceiling heights of 10 to 12 meters to accommodate the system's vertical laser column and vibration-isolated optical suspension frames.

The Cost of Ownership (CoO) Equation

Consider the stark capital differences between current production equipment and the next generation:

• Low-NA 0.33 EUV (NXE:3600D / NXE:3800E): Procurement price stands between $180 million and $220 million per scanner. These systems run at established speeds exceeding 160 to 200 wafers per hour, backed by fully amortized fabrication cleanrooms.
• High-NA 0.55 EUV (EXE:5000 / EXE:5200): Unit acquisition cost surges to approximately $380 million to $400 million each—more than double the prior generation. Early iteration throughput hovered near 150 wafers per hour, translating to a substantially higher manufacturing cost per raw wafer pass.

For TSMC, deploying dozens of $400 million machines prematurely could dilute operating margins and potentially lead to price adjustments for high-volume chip buyers like Apple, AMD, Qualcomm, and Nvidia. By anchoring its node migration to 2030, TSMC allows ASML and key subsystems suppliers like Zeiss to refine optical transmission efficiencies, pushing wafer run-rates past 220 WPH and safeguarding baseline foundry profitability.

4. Strategic Battlefield: Intel, Samsung, and TSMC's Divergent Paths

Semiconductor manufacturing at the leading edge is a triopoly. Each participant has mapped a distinct timeline and risk profile for High-NA adoption.

Intel’s High-Stakes Gamble

Intel's decision to accept the first commercial delivery of ASML's EXE:5000 system at its Oregon facility represents a calculated gamble. Having processed over 1,000,000 wafers across testing, R&D, and commercial production layers, Intel's engineers are working to build operational mastery ahead of the pack. However, early adoption incurs steep costs: depreciating $400 million systems across modest initial output can pressure foundry operating margins until production ramps cleanly at scale.

Samsung’s Memory Hedging Strategy

Samsung Electronics is pursuing an elegant hybrid strategy. By scheduling High-NA tools for advanced DRAM production in 2028 before deploying them into contract logic fabrication, Samsung leverages memory’s regular, highly repetitive cell architectures. This minimizes the design rule penalties of High-NA optics while building yield expertise before challenging TSMC’s sub-2nm foundry domain in 2030.

TSMC’s Low-NA Squeeze (A16 through A12 Nodes)

TSMC’s playbook centers on maximizing the lifespan of depreciated capital equipment. By utilizing advanced optical proximity correction (OPC) and self-aligned quad-patterning (SAQP) on proven 0.33 EUV scanners, TSMC will manufacture its 2nm (N2), A16 (1.6nm), and planned A14 nodes without buying early High-NA tools. This disciplined approach enables TSMC to generate robust operational cash flows while letting competitors shoulder the costly early learning curve.

5. Optical Physics Behind the Headlines: Anamorphic Lenses, Stitching, and 12-inch Masks

To evaluate technology investments like a professional analyst, we need to understand the physical bottlenecks engineers are working to solve. The transition to High-NA is not a simple lens upgrade; it alters fundamental wafer geometry.

The Anamorphic Magnification Asymmetry

In standard 0.33 Low-NA lithography, light reflects through a reduction lens with uniform 4x demagnification in both horizontal (X) and vertical (Y) axes, projecting an image from a standard 6-inch square photomask onto a full exposure field measuring 26mm by 33mm. This matches the dimensions of standard computing processors.

When ASML increased the numerical aperture to 0.55, retaining a 4x reduction would have required incident light to strike the photomask at excessively steep angles, causing the mirror patterns to shadow adjacent lines. To solve this, ASML and optical partner Carl Zeiss developed an anamorphic lens system featuring asymmetric reduction: 4x magnification along the horizontal axis, but 8x magnification along the vertical axis. Consequently, the reticle field projected onto the silicon is halved to 26mm by 16.5mm—commonly known as a half-field.

The Reticle Stitching Hurdle

Herein lies the engineering headache: modern enterprise artificial intelligence accelerators—such as cutting-edge multi-reticle AI processors—regularly approach or exceed full-field boundaries (800mm² or larger). Because a High-NA scanner prints only half-fields, fabricating a massive enterprise processor requires splitting the design across two distinct photomasks and joining them on the wafer using stitching.

If the alignment between these two exposures drifts by more than a couple of nanometers, the cross-boundary interconnect lines will short or fail, ruining the entire wafer. For TSMC, whose primary margins come from manufacturing large, complex accelerators for clients like Nvidia and AMD, reticle stitching represented an unacceptable yield vulnerability.

The 12-inch Photomask Breakthrough

This reality illuminates why TSMC’s joint announcement with ASML proved so consequential. Rather than accepting stitched half-fields as an unavoidable penalty, TSMC collaborated with ASML to initiate development of a revolutionary 12-inch photomask infrastructure. Quadrupling reticle surface area allows High-NA scanners to project full-size enterprise AI circuits in single passes without stitching.

However, overhauling the industry standard from 6-inch quartz blanks to 12-inch substrates requires re-engineering mask writer tools, robotic transport pods, automated stockers, and chemical cleaning stations. With pilot testing slated for 2031 and high-volume deployment targeting 2033, this transition underscores why TSMC's true High-NA utilization will ramp steadily over the course of the next decade rather than overnight.

The Phenomenon of Droplet Generation

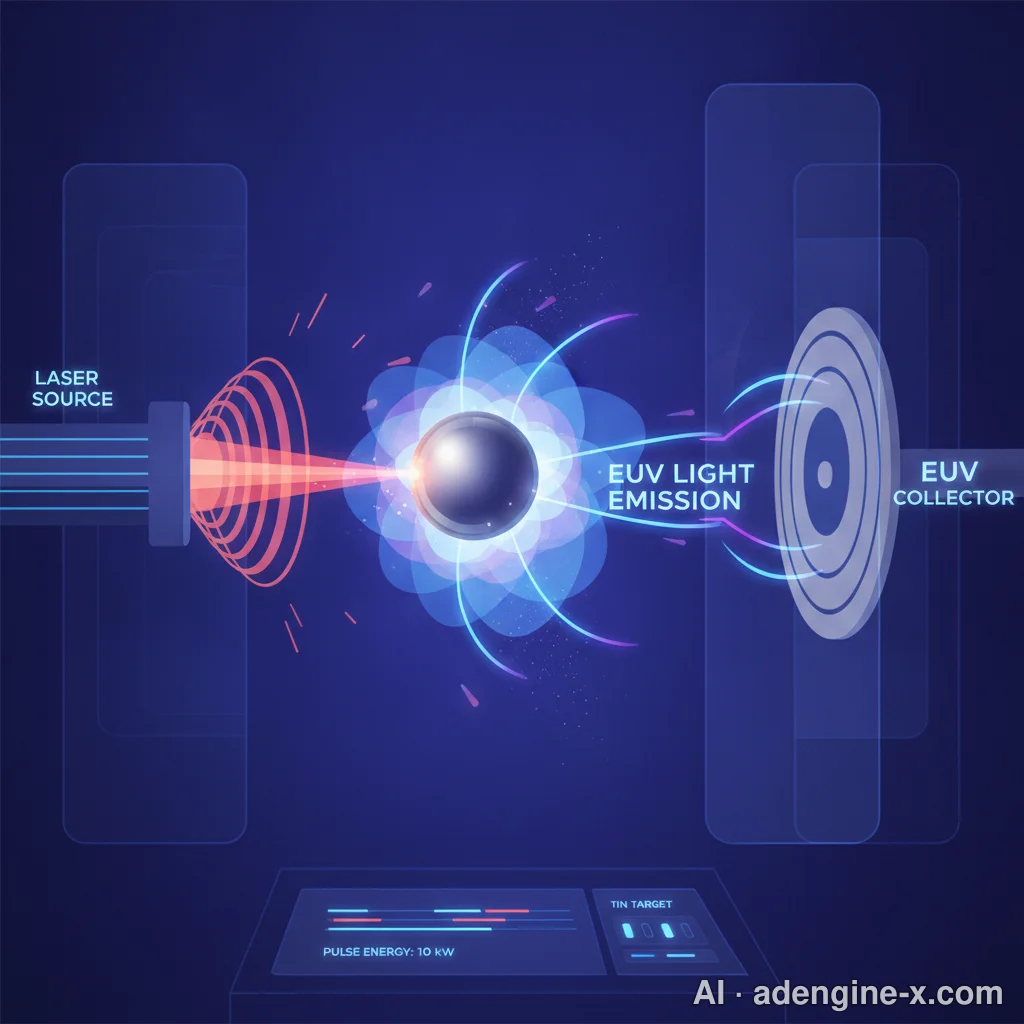

The extreme physics behind EUV light generation highlights why ASML faces no direct market competition. Inside the scanner's vacuum chamber, a specialized generator releases molten tin droplets measuring just 25 micrometers in diameter at speeds of 50,000 drops per second. An industrial high-power CO2 laser fires a rapid dual-pulse sequence: the prepulse flattens the droplet into a pancake shape, and the main pulse vaporizes it into a high-temperature plasma reaching several hundred thousand degrees Celsius. This plasma emits extreme ultraviolet radiation at 13.5 nanometers, which is captured and directed by multi-layer molybdenum-silicon mirrors polished to atomic tolerances. Replicating this mechanical ballet requires billions in capital, ensuring ASML's competitive moat remains intact.

6. Practical Action Guide: Household IT Budgeting and Family Investment Portfolios

How does this multi-billion dollar industrial shift translate into decisions around family tech purchases and long-term household investment portfolios? Let's break down practical steps for both domestic IT management and prudent asset allocation.

Family Tech Hardware Refresh Calendar

Careful parents often wonder: Should we delay upgrading family laptops, tablets, or smartphones until High-NA silicon hits store shelves? The short answer is no. Consumer flagships through 2028—including upcoming premium smartphones and personal computers—will be powered by TSMC’s refined 3nm, 2nm, and A16 nodes, all built on mature 0.33 Low-NA EUV platforms. These processors deliver exceptional thermal efficiency and battery endurance without the early production cost premiums of High-NA tools. Waiting for 2030-era silicon to buy practical household devices makes little financial sense.

The Family Portfolio Investment Allocation Checklist

When investing family capital, long investment horizons are an asset, provided we remain disciplined regarding valuation multiples and technical execution risks.

7. A Meticulous 4-Day Analytical Field Study Itinerary

For investors, business analysts, or family observers traveling to evaluate these industry dynamics firsthand, this targeted 3-night, 4-day itinerary connects leading research hubs across California's Silicon Valley and the Monterey tech corridor.

8. Looking Ahead: The 2026–2035 Industry Roadmap and Final Takeaways

To conclude our strategic assessment, let us map out the milestones defining the global semiconductor landscape over the next ten years. Technology revolutions require patient execution; keeping this schedule in mind will help anchor your family's investment strategy.

The Decade-Long Timeline

• 2026–2027: Intel accelerates customer sampling on its 14A node, leveraging initial operational data from its Oregon High-NA testbed. TSMC enters high-volume manufacturing for its standard 2nm (N2) and A16 nodes, relying entirely on refined 0.33 Low-NA EUV tools to preserve strong cash margins.
• 2028: Samsung Electronics introduces High-NA EUV scanners into commercial production for sub-10nm DRAM, marking the maiden volume manufacturing run for 0.55 NA optics in memory. TSMC ramps its A14 logic node, maintaining capital discipline without early High-NA deployments.
• 2030: TSMC brings its first commercial High-NA EUV fab online for sub-A10 processes using established 6-inch reticles. Simultaneously, Samsung expands High-NA usage into leading-edge foundry fabrication.
• 2031–2033: Pilot deployment of the 12-inch photomask infrastructure begins, led by ASML, TSMC, and reticle partners. Production-grade High-NA systems compatible with 12-inch masks arrive by 2033, eliminating anamorphic half-field stitching and inaugurating a new era of monolithic artificial intelligence hardware.
• 2034–2035: 12-inch photomask architectures become the baseline standard across premier logic fabs, cementing the longevity of 0.55 NA systems well into the middle of the century.

Final Thoughts for Family Investors

TSMC’s formal commitment to ASML’s High-NA roadmap brings welcome long-term clarity to global technology markets. It demonstrates that Moore’s Law—expressed through human ingenuity, laser physics, and precision optics—continues to march forward. For ASML, the announcement secures durable technological relevance and commercial demand for the next decade.

For the family investor, the takeaway is simple: align your investment horizon with reality. The narrative of High-NA lithography is inspiring, but its financial rewards will unfold over years, not weeks. Avoid the temptation to buy into near-term speculative spikes when multiples run hot. Instead, take a steady, long-term view—reinvesting through regular market cycles, favoring balance-sheet strength, and anchoring your family’s financial future on structural, verifiable innovation.
